Thermal Transfer Overprinters

Thermal Transfer Overprinters (TTO)

PSS Supplies & Provides Technical Support for Videojet® DataFlex® line of Thermal Transfer Overprinters (TTO) which delivers high resolution images on flexible packaging film and labels, while minimizing downtime and costs associated with ribbon replenishment and production changeovers. The printers include a host of class leading benefits - long ribbon lengths, fast print speeds, error prevention features and simple operator interaction - optimized to meet your application needs.

High Speed Thermal Transfer OverPrinters (TTO)

High performance TTO systems offer higher throughput to provide more capability for faster marking applications, along with advanced data handling to print information such as variable bar codes. Offered in two print width formats, the Videojet high-speed TTO product range spans ultrafast horizontal form, fill, seal and wide format coding applications requiring a significant amount of content.

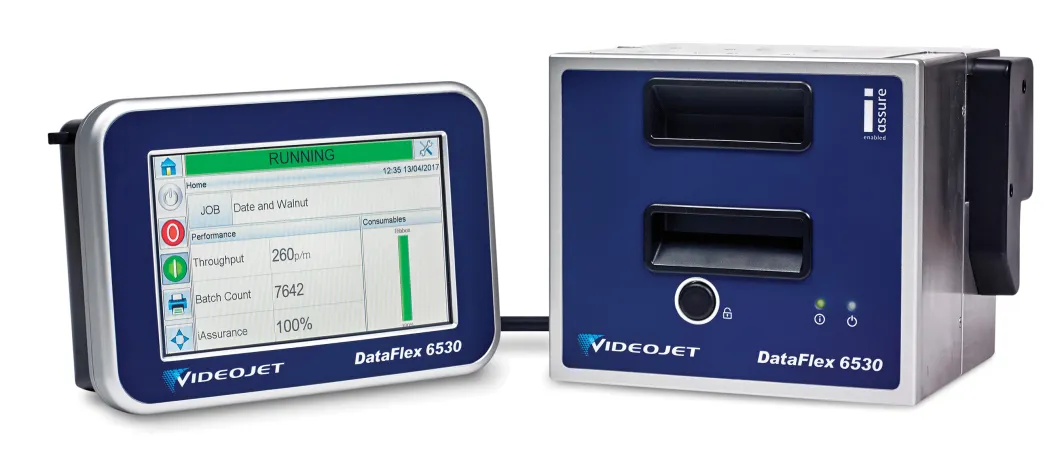

Videojet DataFlex® 6530 TTO
  • Videojet iAssure™ intelligent technology which automatically detects common print defects, helping to reduce unwanted waste or reworked product
  • Intelligent Motion™ technology removes the need for compressed air and associated costs and downtime, maximizing consistent print quality and printhead life
  • Quick change printhead and minimal wear parts reduce the time production is interrupted when replacements are required
  • Modular design that easily integrates into your production line and includes the option to mount the power supply and connection hub in the host machine control cabinet
Videojet DataFlex 6420
  • 53 mm and 107 mm print widths
  • Top speed of up to 400 packs/min
  • Ideal for high speed horizontal fill or shipping label applications

Medium Duty Thermal Transfer Printers

Videojet medium duty TTO products are designed to make operation quick, simple and virtually error-proof and deliver low cost of ownership for moderate speed applications including vertical form, fill and seal. Advanced built-in software makes operation both simple and reliable by virtually eliminating downtime and coding errors.

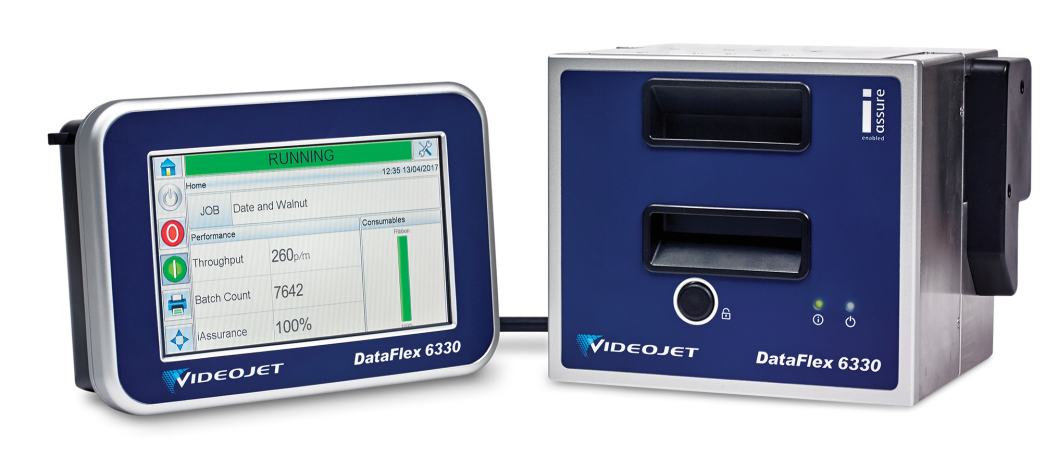

Videojet DataFlex 6330
  • Videojet iAssure™ intelligent technology which automatically detects common print defects, helping to reduce unwanted waste or reworked product
  • Intelligent Motion™ technology removes the need for compressed air and associated costs and downtime, maximizing consistent print quality and printhead life
  • Quick change printhead and minimal wear parts reduce the time production is interrupted when replacements are required
  • Modular design that easily integrates into your production line and includes the option to mount the power supply and connection hub in the host machine control cabinet
Videojet DataFlex 6320
  • 32 mm and 53 mm print widths
  • Top speed of up to 250 packs/min
  • Ideal for many vertical fill applications

Low Speed & IP Rated Thermal Transfer OverPrinters

Low speed TTO products offer a proven and cost-effective solution for users ready to migrate to a digital solution from a non-digital solution such as hot stamp or roller coders. Videojet low speed TTO solutions are ideal for lower speed intermittent and continuous motion flexible packaging applications and deliver maximum reliability and efficiency for marking variable, high resolution images on flexible packaging and labels — at an affordable price.

Videojet 6210
  • 32 mm max print width
  • Top speed 125 packs/min
  • Economical solution for low speed applications
Videojet IP DataFlex Plus
  • 53 mm max print width
  • Top speed 400 packs/min
  • IP 65 rated for simplified cleaning in washdown environments
